Rug tufting is one of the most rewarding crafts you can pick up — and the barrier to entry is lower than you might think. Here's everything you need to get started.

The Essential Kit

1. A Tufting Machine

Your tufting machine is the core of the whole operation. Machines come in two main categories:

• Cut-pile machines (like the AK-I) automatically cut the yarn as you tuft, creating upright fiber ends for a plush, carpet-like surface.
• Loop-pile machines (like the AK-II) punch yarn through the cloth in a continuous cycle, leaving loops on the surface. The yarn must be cut by hand when you lift the machine.
• Cut + Loop machines (like the DUO) do both, and give you control over pile height from low to high.

Our recommendation for beginners: the DUO. It's versatile — cut pile, loop pile, and multiple pile heights — so it grows with you as your skills develop.

2. Primary Tufting Cloth

You need a fabric designed specifically for tufting. Our Primary White Tufting Cloth is the industry standard, engineered to work with tufting machines and hold yarn securely. Order enough to include a generous allowance on all sides — you'll need to grip the edges in your frame.

3. Yarn

Not all yarns are created equal for tufting. High-quality rug-making yarns like our Reflect Wool and Eco-Cotton are specifically designed to work well in tufting machines. Natural fiber yarns — wool and cotton especially — will give you the best results. Most beginners find that tufting with two strands simultaneously creates a nicely dense pile.

4. A Tufting Frame

Your tufting cloth must be stretched tight on a frame while you work — similar to how a canvas is stretched for painting. Our Instant Tufting Frame is the quickest way to get set up, but you can also build your own for a fraction of the cost.

5. Adhesive / Latex

Once you're done tufting, you'll apply adhesive to the back of your cloth to lock all the yarn in place. Without it, every fiber would simply fall out. We recommend synthetic latex adhesive for floor rugs. See our full Adhesive 101 guide for a deep-dive.

6. Backing Cloth

After the adhesive is applied, you'll attach a backing cloth for a clean, finished look and extra durability. Common options include Final Bac, felt backing, and Action Bac.

7. Scissors or Shears

You'll use these to trim your finished pile, cut yarn, and shape edges. Invest in a good sharp pair — dull scissors make finishing work much harder.

Optional but Helpful

• Spring balancer / tool balancer — suspends your machine overhead to reduce hand and arm fatigue during long sessions
• Yarn feeder / cone stand — keeps your yarn feeding smoothly as you work
• Marker or chalk — for transferring your design onto the tufting cloth
• Projector — many tufters project their design directly onto the cloth for easy tracing

Ready to make your first rug? Here's the process from blank cloth to finished piece.

Step 1: Design Your Piece

Start simple — a bold shape or two-color design works great for a first project. Sketch it out, then transfer it onto your tufting cloth using a marker. Many tufters use a projector to trace designs directly. Keep in mind that what you're drawing on the back of the cloth will appear mirrored on the front.

Step 2: Mount Your Cloth on the Frame

Stretch your tufting cloth onto your frame so it's evenly taut — not saggy, not overly distorted. The cloth should feel firm when you press against it with your hand. Clip or staple the edges to the frame's carpet tack strips, working from the center outward on each side to avoid wrinkles.

Step 3: Load Your Yarn

Thread your yarn through the machine following your machine's threading guide. Tufting with two strands from two separate cones creates a fuller, denser pile. Rewind yarn from balls onto cones before tufting — the machine feeds more smoothly from a cone than a ball.

Step 4: Tuft Your Design

Hold the machine firmly against the cloth and press — don't hover. Move slowly and steadily, working in rows. When you reach a section you want to cut away from, lift the machine gently — the loop or cut pile will stay in place. Fill in your design section by section, one color at a time.

Step 5: Trim and Shape

Once tufted, use sharp scissors or clippers to trim any uneven pile and shape the edges. This is where your rug really starts to look polished. Take your time with this step — good trimming elevates everything.

Step 6: Apply Adhesive

Flip your piece over. Spread synthetic latex adhesive evenly across the entire back surface, making sure it reaches all the way to the edges. Use a notched trowel or brush for even coverage. Let it dry completely before handling. See our Adhesive 101 guide for full details.

Step 7: Attach Backing

Once the adhesive is dry, press your backing cloth (Final Bac, felt, or Action Bac) firmly onto the back. Trim any excess and fold or bind the edges for a clean finish.

Step 8: Finishing Touches

Give your piece a final trim and vacuum. If it's a floor rug, consider having the edges professionally serged or bound for maximum durability.

Building your own frame is a great way to save money and get exactly the size you need. You'll need a drill and a hammer in addition to the materials below.

Materials for a 72" × 72" Frame

• 5 pieces of lumber: 2" × 3" × 96"
• Approximately 24 feet of carpet tack strip (we recommend buying two packs of three 4-foot strips — choose a version with pre-installed nails, and add wood glue for extra security; avoid peel-off adhesive-back varieties)
• 2.5" screws for frame construction
• 1.25" screws for leg braces
• Wood glue and nails (or a staple gun)

Instructions

1. Cut frame pieces: Cut the ends of four lumber pieces at 45-degree miter angles to create the four sides of your frame.
2. Assemble the frame: Join the four mitered pieces into a square using screws and wood glue at each corner. Let dry.
3. Add leg braces: Use the fifth piece of lumber to create two leg braces (cut in half) that allow the frame to stand upright at a comfortable working angle.
4. Attach carpet tack: Nail carpet tack strips around the inner perimeter of the frame, with the teeth pointing inward and upward. This is what grips your tufting cloth.
5. Mount your cloth: Press the tufting cloth onto the carpet tack teeth, starting from the center of each side and working outward to keep it evenly stretched.

Tip: A sturdy, well-built frame makes a huge difference in how your tufting turns out. Wobbly cloth leads to uneven pile and frustration. Take your time building it right.

Choosing the right machine is the single most important gear decision you'll make. Here's how they break down.

By Pile Style

Cut-Pile Machines (e.g., AK-I)

Cut-pile machines automatically cut the yarn after each tuft, leaving upright fiber ends on the surface. The result is a dense, soft, carpet-like texture — the most common look for tufted rugs. The AK-I is extremely easy to use and a great starting point if you know you want cut pile.

Loop-Pile Machines (e.g., AK-II)

Loop-pile machines punch yarn through the cloth in a continuous cycle, leaving loops on the surface. This creates a nubby, textured look. You'll need to cut the yarn by hand each time you lift the machine. The AK-II also offers very easy operation.

Cut + Loop Machines (e.g., DUO, AK5, KRD-I)

These versatile machines can produce both cut pile and loop pile, and often offer multiple pile heights. The DUO is our top recommendation for beginners and intermediates because of its flexibility.

By Pile Height

Low-Pile Machines

Produce pile heights of roughly 0.275" to 0.70" (7–18mm). This is the most common range for rug tufting — practical, durable, and great for detailed designs. Includes the AK-I, AK-II, DUO (low-pile setting), KRD-I, and AK5.

High-Pile Machines

Produce pile heights from 0.78" to 2.36" (20–60mm), creating a lush, sculptural texture. The AK-III is TTW's high-pile machine. It requires both electricity and an air compressor, and has a medium-to-difficult learning curve compared to low-pile machines.

Quick Reference

All machines weigh approximately 3 lbs (except the AK-III at 4 lbs 10 oz) and are compatible with 110v–220v worldwide. Only the AK-III requires an air compressor.

Here's a side-by-side look at the TTW machine lineup to help you find the right fit.

Which Machine Is Right for You?

• Complete beginner: DUO — gives you flexibility to explore pile styles without committing early
• You know you want cut pile only: AK-I — ultra simple, low maintenance
• You want a specific low pile size: AK5 tufts at a fixed 16mm — great for consistent results
• You want shaggy, sculptural, high-pile work: AK-III — powerful but has a steeper learning curve

The AK-III is a pneumatic (air-powered) machine, meaning it requires both an electrical outlet and an air compressor to operate.

What to Look For in a Compressor

You need an air compressor compatible with spray guns or sanders, with an output of 5–7 CFM at 90 psi. Compressors with lower CFM at 90 psi won't supply enough air to support continuous tufting.

Connecting the Compressor

The AK-III connects to an air compressor the same way any air-driven tool does — through a standard air hose fitting. Your local hardware store, auto parts store, or air compressor specialist can help you find the right fitting for your region, since hose connections vary by country.

A Note for International Buyers

Because fitting standards differ worldwide, TTW is unable to specify which fitting you'll need. The manufacturer of your local compressor, or a hardware professional, will be your best resource here.

Before you can tuft a single loop, your frame needs to be set up and your cloth mounted correctly. This step matters more than most beginners realize — loose cloth leads to uneven pile, frustration, and wasted time.

Setting Up the Instant Tufting Frame

1. Unfold the frame and lock all four corner joints securely — the frame should be rigid with no flex
2. Lean the frame at a comfortable working angle (roughly 15–20 degrees back) or use a stand/wall support
3. Ensure the frame is at a height where the center of your design is at chest or eye level — this prevents back strain

Mounting Your Cloth

1. Lay your pre-drawn tufting cloth over the frame
2. Attach the top edge to the carpet tack strips, starting from the center and working toward the corners
3. Pull the bottom edge taut and attach — the cloth should feel firm but not distorted
4. Repeat for the left and right sides, working from center outward on each side
5. Check all four corners — they tend to pucker; smooth them out by re-stretching nearby sections

The "Drum Test"

A properly mounted cloth sounds and feels like a drum when you tap it with your finger. If it flops or sounds dull, it's too loose. If the weave is visibly distorted, it's too tight. Aim for that firm, resonant middle ground.

Re-Tensioning

As you tuft, the cloth can loosen slightly due to machine vibration. Periodically check the tension and re-grip any sections that have come loose from the tack strips.

Yarn choice has a huge impact on how your rug feels, looks, and holds up over time. Here's what you need to know.

The Best Yarns for Tufting

Wool

Wool is the gold standard for rug tufting. It's durable, naturally resilient, holds color beautifully, and feels wonderful underfoot. Our Reflect Wool is specifically formulated for tufting machines. If you're making a floor rug meant to last, wool is the best choice.

Cotton

Cotton is soft, natural, and great for wall hangings or decorative pieces that won't see heavy foot traffic. Our Eco-Cotton is a popular choice for tufters who want a natural fiber with a slightly different texture than wool. Cotton can be a bit more challenging to tuft with than wool.

Acrylic

Acrylic yarns are affordable and come in an enormous range of colors, which makes them attractive for beginners experimenting with bold designs. They're slightly less durable than natural fibers, but work well for wall art or decorative pieces. Acrylic can be "too soft" at times — if you're experiencing machine cutting problems, switching to a firmer yarn is often the fix.

What to Avoid

Very thin or fuzzy novelty yarns often cause feed problems in tufting machines. Stick with a smooth, consistent-twist yarn with enough body to feed through the machine reliably. Extremely soft yarns are a common cause of cutting issues — see Why is my machine cutting the yarn?

Strands and Density

Most tufters feed two strands of yarn simultaneously for a fuller, denser pile. Thinner yarns may require three, four, or even five strands to achieve a satisfying density. You can either set up a multi-cone yarn feeder stand, or rewind multiple strands together onto a single cone before tufting.

Preparing Your Yarn

If your yarn comes as a ball (rather than a cone), rewind it onto a cone before tufting. The machine feeds much more smoothly from a cone. Balls tend to bounce, snag, and create tension inconsistencies that affect your pile quality.

Estimating yarn quantities is one of those things that gets easier with experience — but here are the key variables and a useful benchmark to start from.

What Affects Yarn Usage

• Pile height: Higher pile uses significantly more yarn per square foot
• Number of strands: Tufting with two strands uses twice as much as one
• Tufting density: How tightly packed your rows are
• Yarn thickness: Thinner yarns require more strands to fill the pile
• Project size: Obviously!

A Useful Benchmark

Using an AK-I Cut-Pile Machine set to 12mm pile, tufting with two strands of Reflect Wool: approximately 8 ounces (half a pound) per square foot.

Since Reflect Wool comes in 16-ounce (1 lb) cones, two cones will cover roughly 4 square feet — about a 24" × 24" area — before both run out.

Planning Your Order

Always order more than you think you need. Running out mid-project and trying to match a dye lot is frustrating. A 10–20% buffer is smart, especially for large single-color areas.

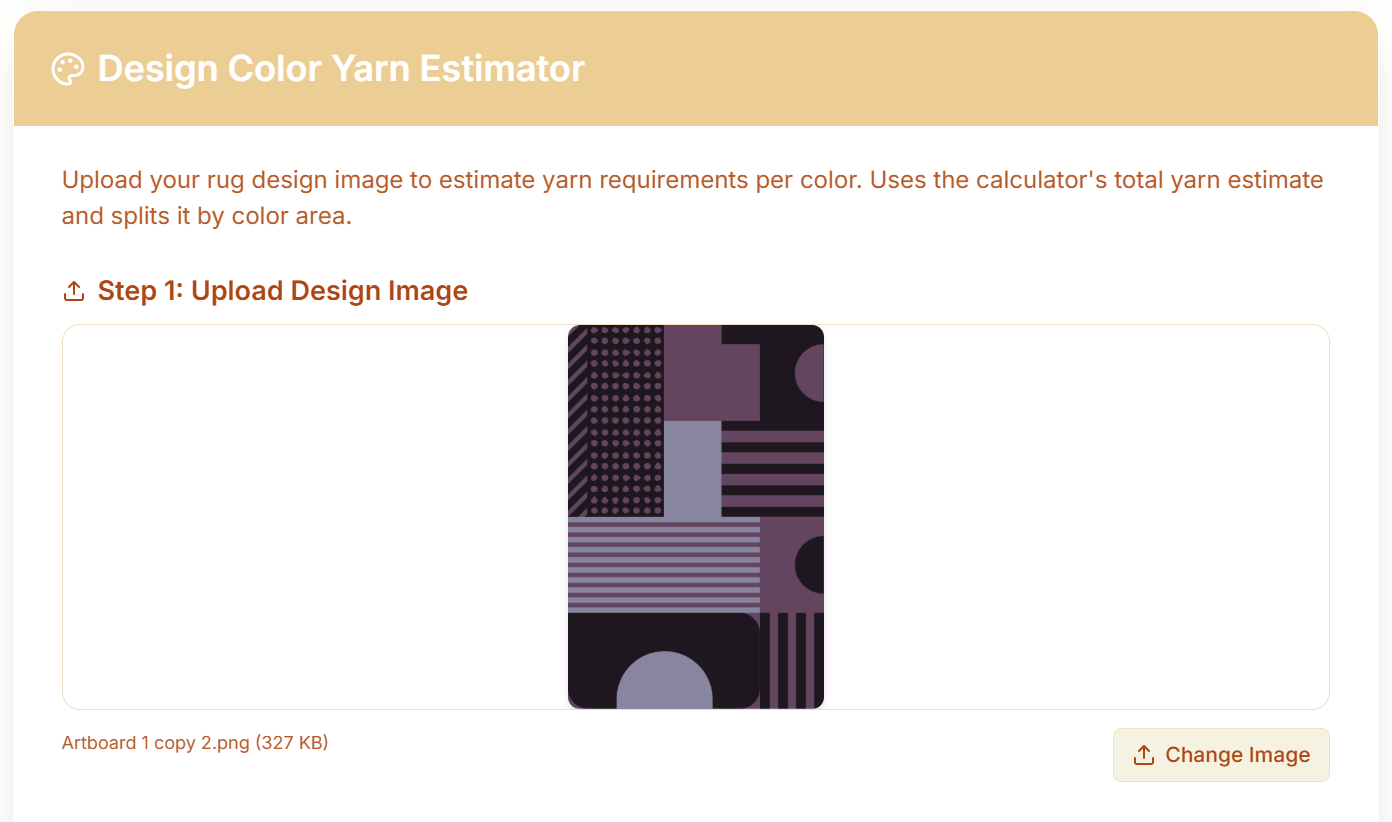

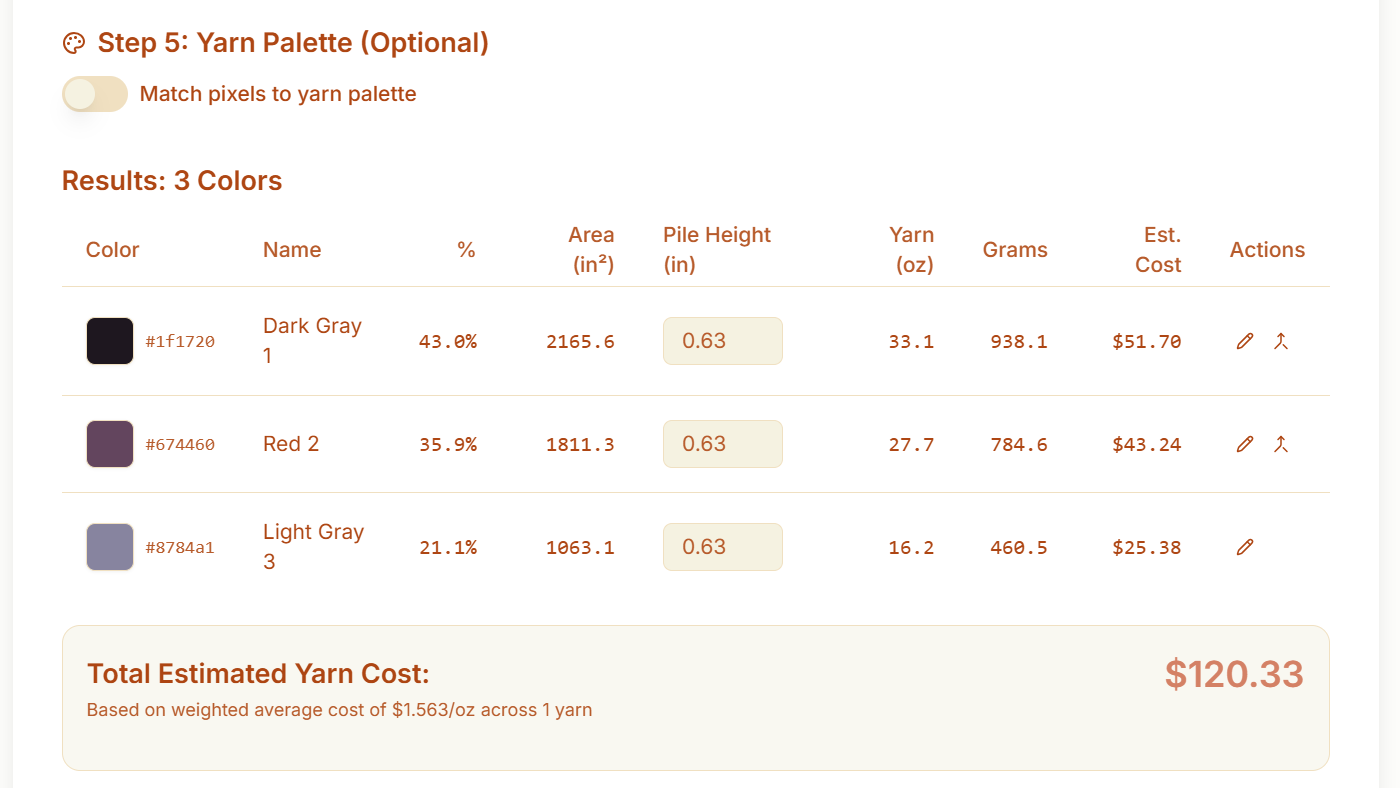

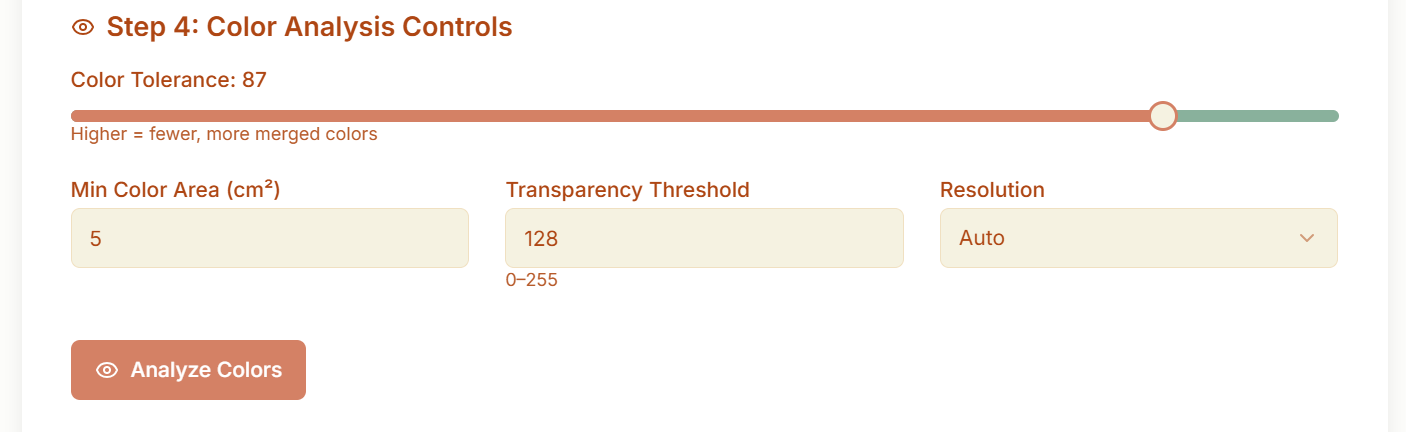

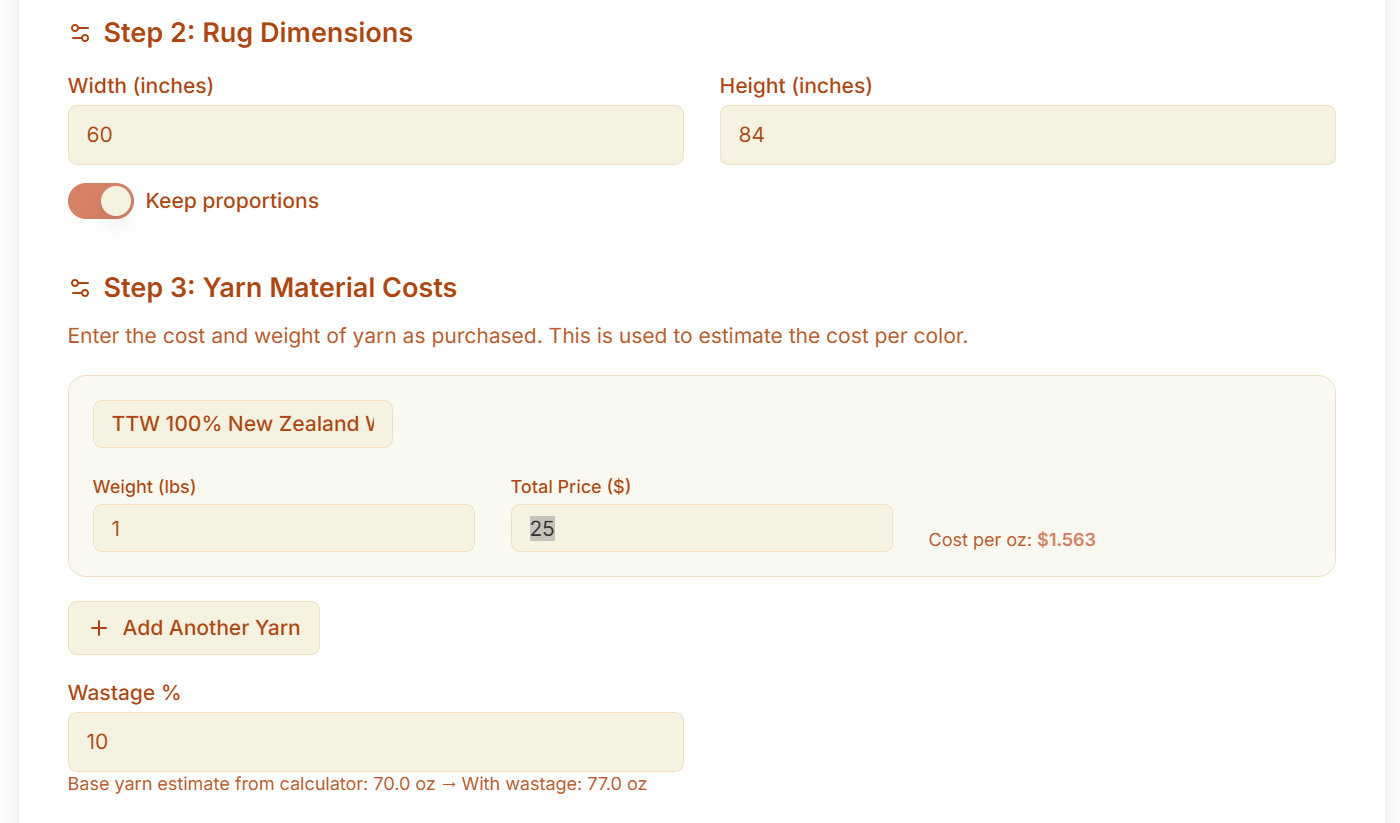

TTW's rug pricing calculator also estimates yarn needs when you enter your rug dimensions — a great tool for planning before you start.

Twisting yarn is one of the most common frustrations for newer tufters — and it usually has a simple cause.

Cause 1: The Yarn Is Winding Up Under Tension

As you move the machine back and forth, the yarn naturally wants to spin. If it has nowhere to unwind, it accumulates twist and eventually tangles or jams in the machine.

Fix: Make sure your yarn cones or spools can rotate freely on your yarn feeder stand. The stand should allow the cone to spin as yarn is pulled, releasing the twist. If your cone is locked in place and can only pay yarn off the top, this is your problem.

Cause 2: Feeding Yarn off a Ball Instead of a Cone

Yarn balls are prone to twisting because they don't unwind in a consistent direction. Rewinding your yarn onto a cone before tufting solves this — cones unwind smoothly and consistently.

Cause 3: Yarn Feeder Stand Is Too Close or Too Far

The distance between your yarn feeder and your tufting gun matters. If the feeder is too close, yarn piles up with no tension. Too far, and it pulls with too much drag. A distance of 3–6 feet generally works well — experiment to find your sweet spot.

Cause 4: Threading Issues

Double-check your threading path. Yarn that wraps around the wrong guide or misses a tension point can twist as it feeds. Compare your setup against the threading diagram in your machine's manual.

Tufting cloth is the woven fabric that you tuft into. Not all fabrics work — you need a cloth specifically designed for tufting.

Primary White Tufting Cloth

TTW's Primary White Tufting Cloth is the industry standard. It's designed specifically for use with tufting machines — the weave structure is engineered to let the needle pass through cleanly while holding the yarn loops in place. It's available by the yard and is suitable for both cut pile and loop pile work.

How Much to Buy

Order enough cloth to cover your design plus a generous allowance on all sides — typically 4–6 inches extra per side. You need this extra cloth to grip onto the carpet tack strips of your frame. If your cloth is too small for the frame, it won't stretch properly and your tufting will be uneven.

Preparing Your Cloth

Transfer your design onto the cloth before mounting it on the frame. A permanent marker or chalk works well. Remember that you're drawing on the back of the cloth — your design will appear mirrored on the front pile side. If your design is asymmetrical (like text or a face), mirror it when you draw it on the back.

Mounting on the Frame

Stretch the cloth onto the frame's carpet tack strips, starting from the center of each side and working outward. The cloth should feel taut and firm — similar to a drum skin. Uneven tension leads to uneven pile, so take your time getting it right.

If you're seeing bits of white or grey cloth fibers appearing on the pile side of your rug, one of two things is happening: the machine's scissors are catching and cutting the cloth, or small cloth bits are getting tufted in. Here's how to diagnose and fix it.

Cause 1: Not Pressing Firmly Enough (Most Common)

If the machine is not pressed firmly against the cloth while tufting, the scissors come in contact with the cloth surface on each stroke and cut small pieces of it. The same issue causes yarn to build up on the back.

Fix: Press the foot of your machine firmly and consistently against the cloth as you tuft. Don't hover — the foot should be in full contact at all times. Review your quick-start guide for tips on proper posture and grip.

Cause 2: Foot and Needle Misalignment

If pressing harder doesn't solve it, the issue is likely a small misalignment between the foot and the needle. The foot and needle need to work in sync — if the needle position has drifted slightly (often from pile height adjustments), the needle will contact the cloth at the wrong point in its stroke.

Fix: You need to realign the foot-to-needle relationship:

1. With the machine off, slowly rotate the white gear (or pink gear on the DUO) by hand.
2. Watch the needle as it moves through its full stroke.
3. The needle should extend cleanly through the hole in the foot, centered and without touching the sides.
4. Refer to your pile height adjustment guide for the specific adjustment steps — the video collection that came with your machine covers this in detail.

You can always pull out visible cloth bits from the pile before applying adhesive — but fixing the root cause will prevent it from continuing.

Adhesive is what makes a tufted rug a rug. Without it, every fiber would simply pull free. This is one of the most frequently asked-about topics in tufting, and it deserves a thorough explanation.

Why Adhesive Is Non-Negotiable

Unlike knitting, weaving, or knotting, tufting doesn't mechanically lock yarn in place — it punches loops or cuts through the cloth. The only thing holding your yarn in after tufting is the adhesive. Getting this step right is critical to how long your rug lasts.

The Standard: Synthetic Latex Adhesive

Synthetic latex is the industry standard for finishing floor rugs. It's flexible, durable, washable when wet, and provides a strong bond that holds up to foot traffic. When it dries, it becomes a flexible rubber-like coating on the back of your rug.

Apply it with a notched spreader or brush across the entire back surface — all the way to the edges. You don't want any bare spots. Let it dry fully before handling the rug or attaching backing.

For Wall Hangings: Hot Glue

If you're making a wall hanging (not a floor rug), hot glue is a practical option. It sets almost instantly, which is convenient, but it's stiffer than latex and less durable for anything that will be folded or handled frequently.

International Buyers: Adhesive Alternatives

Synthetic latex isn't available in every country. Here are some alternatives that members of the TTW community have found to work well:

• Pattex — available in many European countries
• Lugato — also widely available in Europe
• Thomsit T440 — used in Germany and surrounding regions

If you're sourcing locally, look for carpet adhesive, carpet glue, or carpet backing compound at flooring supply stores. Always read the label to understand drying time, toxicity, and application method.

Traditional Alternatives

Historically, some traditional rug makers used corn starch-based adhesives — companies like Langhorne Carpet in Philadelphia (nearly 100 years old) still use starch-based formulas. These work, but they're not as water-resistant as synthetic latex.

Application Tips

• Work in a well-ventilated area — adhesive fumes can be strong
• Apply a generous, even coat — thin spots lead to yarn loss
• Use a notched trowel for floor rugs for consistent depth
• Let it dry fully before adding backing — typically 24 hours
• For extra security, some tufters apply two coats

After your adhesive is dry, you'll attach a backing cloth to the underside of your rug. The backing protects the adhesive, gives the rug a clean, finished appearance, adds grip and cushioning, and helps it lie flat.

Common Backing Options

Final Bac

Final Bac is a popular non-woven backing cloth designed specifically for hand-made rugs. It's easy to cut and attach, lies flat, and gives a very clean, professional look to the finished piece. This is a great all-purpose choice for floor rugs.

Felt Backing

Felt is a softer option that adds extra cushioning underfoot. It also tends to grip hardwood or tile floors better than harder backings. A good choice for rugs that you want to feel extra plush from both sides.

Action Bac

Action Bac is a woven backing used in commercial carpet production. It's stiffer and more structured than Final Bac or felt, and is typically used on larger, higher-traffic pieces where dimensional stability matters.

How to Attach Backing

1. Allow your adhesive to dry completely (usually 24 hours).
2. Cut your backing cloth to the size of your finished rug.
3. Press the backing firmly onto the adhesive side — you can add a thin second coat of adhesive to help bond it.
4. Trim edges cleanly and fold or bind as desired.

Finishing is where a good rug becomes a great rug. Don't rush it.

Step 1: Trim and Shape Your Pile

Using sharp scissors or electric clippers, trim the pile to an even height. Shape the edges for a clean, intentional look — especially important if your design has curved or irregular edges. Look for stray fibers, loops, or uncut ends and remove them. Good pile trimming takes time, but it dramatically changes the final appearance.

Step 2: Apply Adhesive

See our full Adhesive 101 guide. Apply synthetic latex across the entire back surface and let it dry completely.

Step 3: Attach Backing

Press your chosen backing cloth onto the dry adhesive. Trim it to size and fold the edges under for a neat finish, or leave a small overlap for later binding.

Step 4: Edge Finishing

For floor rugs intended for heavy use, professional edge binding or serging adds significant durability and a polished look. You can do this yourself with carpet binding tape, or have it done professionally. See Should You Have Your Rug Professionally Finished?

Step 5: Final Trim and Vacuum

Once everything is assembled, do a final trim pass and vacuum the pile side gently with a hose attachment to remove any loose fibers. Your rug is now ready.

If you're making a floor rug meant to take real foot traffic, professional finishing is worth considering. It extends the life of your rug and gives it a level of polish that's hard to achieve at home.

What Professional Finishing Includes

Rug finishing services typically offer serging (wrapping the edges with yarn on a specialized serging machine) or binding (attaching a strip of fabric or carpet tape around the edges). Both protect the perimeter from wear and fraying, and give the rug a very clean look.

Who Offers It

Many rug repair shops and carpet manufacturers offer finishing services. Here are some businesses TTW has found helpful (note: call ahead to confirm they work with hand-tufted pieces):

• Bond Products — Philadelphia, PA
• HM Nabavian & Sons — New York, NY
• Better Carpet Warehouse — Brooklyn, NY
• PAFCO Products — Buffalo, NY
• CBS Carpet Binding — Hyattsville, MD
• Atiyeh Bros. — Portland, OR
• Da Burns — Seattle, WA
• Dallas Carpet Binding — Dallas, TX

If you're outside these areas, reach out to local rug stores or carpet manufacturing companies — they often know who does finishing work in your region.

DIY Binding

If professional finishing isn't accessible or affordable, carpet binding tape (iron-on or adhesive) is a reasonable DIY alternative. It won't last as long as serging, but it provides a clean edge and protection.

Tufted pieces need occasional cleaning — especially floor rugs, garments, and pillows. The main thing to know: most adhesives are not machine-washable, so standard laundry methods can destroy your work.

Recommended Cleaning Methods

• Regular vacuuming: Use a hose attachment, or remove the "beater bar" from your vacuum. The beater bar can suck up and damage fibers, especially on high-pile rugs.
• Liquid spills: Blot immediately with a clean, undyed cloth or towel. Don't rub — dabbing prevents the liquid from spreading deeper.
• Spot cleaning: Use a damp cloth and a gentle, neutral soap. Clean only the stained area and don't soak the rug. Soaking can dissolve or break down some adhesives.
• Machine washing: Only if you have previously tested this method with the specific materials in your piece and confirmed the adhesive can handle it.
• Professional cleaning: A rug cleaning service is the safest option for a valuable or heavily soiled piece.

What to Avoid

• Soaking the rug in water
• Washing in a machine without prior testing
• Harsh chemicals or bleach
• High heat (dryers, steam cleaners) unless you've confirmed compatibility

Running through this quick checklist before every session prevents the vast majority of common issues. Most machine problems can be traced back to skipping one of these steps.

Pre-Use Checklist

• ✅ Machine is securely mounted to a sturdy frame
• ✅ Tufting cloth is stretched tightly — loose cloth causes poor pile formation
• ✅ Correct yarn type is loaded (coarser, denser yarn works best; soft or thin yarns cause feeding and cutting issues)
• ✅ Power adapter matches your machine model — the AK-5 cannot use adapters from other models
• ✅ Machine has been oiled — see Machine Oiling & Maintenance

Yarn Setup Best Practices

• Use a cone stand with an eyehook directly above the cone to guide yarn smoothly into the machine
• If using a skein, pull yarn from the center of the skein to reduce resistance and prevent tension inconsistencies
• Avoid pulling yarn from a flat-wound skein placed on a surface — uneven resistance causes irregular pile height
• Rewind balls onto cones before tufting for smooth, consistent feeding

Video Resources

All setup and repair videos are available at the TTW Vimeo showcase. Contact support@tufttheworld.com for access details.

The vast majority of tufting machine problems — motor slowdowns, high-pitched sounds, jerky motion, and skipped stitches — stem from insufficient lubrication. Regular oiling is the single most important thing you can do for your machine.

What Oil to Use

• Sewing machine oil — best option
• 3-in-1 multipurpose oil — good substitute
• Any light lubricating oil
• Never use WD-40 or heavy grease

When to Oil

• Before each use — every single session
• During extended all-day sessions: re-oil every 2 hours
• After oiling, manually rotate the white gear by hand a few times to distribute the oil

Low-Pile Machines (AK-I, AK-II, All DUOs, KRD-I)

As a general rule, apply oil to every part of your machine that moves. Focus on:

• Metal bar in front of the white square bearings (top and bottom)
• Metal bar behind the white square bearings (top and bottom)
• All visible moving metal-on-metal contact points
• Needle bar and any areas showing friction or wear

You can't over-oil — don't be shy with it.

High-Pile Machine (AK-III)

High-pile machines run at higher speeds than low-pile machines and need to be oiled more frequently — ideally before every use. Apply oil to:

• All metal bars in front of and behind the white square bearings
• The blade assembly (additional oil point unique to the AK-III)

Do not skip oiling even for short sessions.

Other Maintenance Habits

• Clean the scissor channel regularly with a small brush or compressed air to remove fiber buildup
• Inspect the needle periodically for bending or dull tips — a damaged needle punches less cleanly and can damage cloth
• Check all screws and bolts occasionally — vibration from tufting can work them loose over time
• Tighten the 4 nuts securing the white plastic covers if they rattle
• Store your machine in a dust-free area when not in use

Needle problems are among the most frequently reported issues — from bent needles caused by shipping, to wrong needle types, to pile height gear misconfigurations. Always confirm your machine model and current mode (cut pile vs. loop pile) before diagnosing.

Issue Reference Table

Needle Replacement Procedure

Pile Height Gear & Needle Position

• Recommended pile height positions: 13 or 14
• Position 15 or higher: needle does not protrude far enough; yarn won't be placed correctly
• Even-numbered gear holes should NOT be used unless the top bar is also adjusted accordingly — using even holes without the bar adjustment causes misalignment
• If the machine is "running but not tufting," check the pile height gear position first — this is one of the most common setup errors

Yarn tension issues are often subtle and can result in inconsistent pile height, yarn falling out of the needle, yarn breaking, or bunching near the needle eye. The primary tension mechanism is the shutter strip — a small, adjustable metal strip near the needle eye.

Issue Reference Table

Shutter Strip Adjustment

The shutter strip is a thin metal piece near the needle eye that controls yarn tension by increasing or decreasing friction as yarn passes through.

Cloth Coming Through on the Front of the Rug

If tufting cloth is visible on the front (pile side) of the rug, this is almost always a foot-to-needle alignment problem. The hole of the needle must not be positioned in front of the foot when the needle is at its forward-most position.

Scissors are one of the most common sources of support requests. Issues range from yarn not being cut at all, to yarn getting trapped, to scissors wearing out over time. After any scissors replacement, the opener and closer must always be re-adjusted.

Issue Reference Table

Scissors Replacement Notes

• Watch the 'AK-I and Duos Scissor Replacement' video in the Vimeo showcase — no need to remove the front cover
• After replacing scissors, both the opener AND closer must be re-adjusted
• If the closer block hits its maximum position after installing new scissors, opener/closer adjustment is required

Adjusting the Scissor Opener & Closer

Closing the Gap Between Scissors and Needle

If yarn is slipping into the gap between the scissors and the needle, the set screw underneath the scissors needs to be tightened.

Motor and power problems are typically caused by one of three things: insufficient lubrication, a worn power cord, or a faulty adapter. Work through the diagnostic steps below in order — most issues are resolved at Step 1 or 2.

Issue Reference Table

Step-by-Step Motor Diagnosis

The white gear drives the needle bar and scissors timing. Issues with it typically result from misalignment, loose hardware, or hardware that has vibrated loose during use.

Issue Reference Table

Bolt Retrieval & Re-Attachment

If a bolt or screw falls off the side of the machine, the nut has likely vibrated loose inside the body. Do not attempt to force the bolt back in — follow this procedure carefully.

Pile height adjustment controls how far the needle protrudes through the cloth, which determines how tall your pile will be. It is frequently requested and is often involved in other issues such as the needle not appearing to work.

Issue Reference Table

Important Notes

• The Duo machine has a dedicated pile height video — always use the Duo-specific video, not the AK-I version
• Even-numbered gear holes should only be used when the top bar is also adjusted accordingly
• Grounding bars on the machine sides affect rotation behavior after trigger release — these are related to pile height settings

Factory Settings — Bar Measurements by Model

If you have changed your pile height settings and cannot remember where you started, these factory measurements allow you to return to the out-of-box configuration. Measurements refer to the upper and lower bar positions on the pile height adjustment mechanism.

Unusual sounds are almost always early warning signs that can be resolved quickly. The most common cause is lack of lubrication. Address sounds promptly — they typically precede more serious mechanical failures if left unresolved.

Issue Reference Table

Diagnosing a High-Pitched Sound: In Order

When a machine cannot be repaired remotely, it is sent to the Tuft the World facility in Philadelphia. This section covers the full send-in process, packing requirements, and what to expect.

When to Escalate to Send-In

• All remote troubleshooting steps have been exhausted
• Circuit board or internal electrical failure is suspected
• Motor failure not resolved by oiling and adapter check
• Physical damage — bent frame, stripped gear teeth, broken housing
• On/off switch stuck or non-functional
• Power cord damage you are not comfortable repairing yourself

How to Pack & Ship Your Machine

Repair Fees & Timelines

Key Resources

Use this at-a-glance table as your first step when diagnosing any machine issue. Find your symptom, check the first action, then follow the link to the full article.

The "pile" of a rug is its raised fiber surface — the part you see and touch. How that surface is created determines its texture, appearance, and durability.

Cut Pile

A cut-pile machine automatically cuts the yarn after each tuft, leaving upright fiber ends on the surface. The result is a dense, plush texture — like classic carpet. Cut pile is the most common style for tufted rugs. It shows design details clearly, is comfortable underfoot, and holds up well to foot traffic.

Loop Pile

A loop-pile machine punches yarn through the cloth in a continuous cycle without cutting, leaving loops of yarn on the surface. This creates a nubby, textured look — think of a traditional Berber carpet. Loop pile is more durable in some ways (no cut ends to snag), but you need to cut yarn by hand when lifting the machine.

Cut + Loop

Machines like the DUO can create both cut and loop pile — either switched between sections of a design (for texture contrast) or simultaneously for a "high-low" sculptural effect. This gives you the most creative flexibility.

Low Pile vs. High Pile

Pile height is separate from cut vs. loop — it describes how tall the fibers are:

• Low pile (7–18mm): The most common range. Practical for detailed designs, floor rugs, and everyday use. Created by low-pile machines (AK-I, AK-II, DUO low setting, AK5, KRD-I).
• Medium pile (20–30mm): Available on the DUO's medium setting. Fuller texture, still workable.
• High pile (35–60mm): Shaggy, sculptural, luxurious. The DUO goes up to 45mm; the AK-III handles 20–60mm. High pile requires more yarn and takes longer to produce.

Good tufting technique makes everything easier — cleaner pile, less wear on your machine, and fewer troubleshooting headaches.

Press Firmly and Consistently

The foot of your machine must be pressed firmly against the cloth at all times while tufting. Hovering or inconsistent pressure is the leading cause of cloth bits appearing in the pile and uneven pile height. Think of it like spreading butter — you want full contact.

Move at a Steady Pace

Too fast and you'll skip areas or get thin spots. Too slow and yarn bunches up. Find a rhythm that works for your machine and yarn combination — it usually takes a few sessions to dial in.

Work in Rows

Tufting in parallel rows creates the most consistent pile coverage. For cut pile, you can work in any direction. For loop pile, maintaining consistent row direction helps keep loops uniform.

One Color at a Time

Change yarn colors by section rather than trying to switch mid-stroke. Finish one color area completely before moving on.

Check Your Tension

If the pile looks thin or you can see the cloth through the fibers, you may need more strands, a shorter stroke speed, or denser row spacing. If pile is bunching on the back, press harder against the cloth.

Trimming is Part of the Art

Don't underestimate the finishing trim. Careful trimming with sharp scissors or clippers is what gives a professional tufted rug its crisp look. Trim evenly, shape edges deliberately, and spend time on this step.

Tufting is generally a safe craft, but it does involve noise, fine fibers, adhesive fumes, and repetitive physical motion. A little awareness goes a long way toward protecting your long-term health.

Hearing Protection

Tufting machines are loud — genuinely, uncomfortably loud for extended sessions. Wear earplugs or ear protection every time you tuft. Prolonged exposure to machine noise can cause gradual hearing loss. This is probably the most overlooked safety consideration in the tufting community, and one of the most important.

Respiratory Protection

Tufting generates fine fiber particles — small enough to inhale easily. Over a long session, this adds up. Wear a dust mask or respirator, especially in enclosed spaces. If you have allergies or asthma, this is even more important. Natural fiber dusts (wool, cotton) are generally less harmful than synthetic fibers, but all fine particulates should be minimized.

Tufting outdoors or with good ventilation makes a real difference. If you're working inside, crack a window and consider an air purifier.

Adhesive Safety

Always read the label on your adhesive before using it. Latex adhesives and carpet glues can vary significantly in their toxicity levels, VOC content, and ventilation requirements. Some are relatively benign; others require significant airflow. Follow the manufacturer's instructions exactly — don't assume it's safe because it looks similar to a product you've used before.

Work in a well-ventilated area when applying adhesive, and avoid prolonged skin contact. Wash hands thoroughly after handling.

Repetitive Strain

Tufting is a physically repetitive activity — your hands, wrists, and arms are doing the same motion for extended periods. Pay attention to:

• Wrist position: Keep your wrist neutral (not bent sharply) while tufting
• Grip: Don't death-grip the machine — a relaxed grip reduces fatigue
• Breaks: Take regular breaks (every 30–45 minutes) to rest your hands and arms
• Posture: Stand or sit at a comfortable height relative to your frame

A spring balancer / tool balancer (which suspends the machine overhead) dramatically reduces hand and arm fatigue for long sessions. If you're tufting seriously, it's one of the best investments you can make.

Pricing your work is one of the hardest things about selling handmade goods — and it's consistently the most-discussed topic in the tufting community. Here's how to think about it, plus how to use TTW's free Price Your Craft calculator to take the guesswork out of the numbers.

Why Tufted Rugs Are Hard to Price

The challenge is that tufting is both materials-intensive and time-intensive. A large rug might take 10+ hours and $80 in materials — and then there's the time you spent designing, finishing, and handling. Getting to a number that covers your costs and values your labor fairly is genuinely difficult.

The Two Main Pricing Approaches

Cost-Plus Pricing

Add up your total costs — materials (yarn, cloth, adhesive, backing), a proportional share of your equipment costs, and packaging — then multiply by a margin that covers your overhead and profit. A common craft seller multiplier is 2–3× your materials cost, but for labor-intensive work like tufting, you often need to go higher.

Time-Based Pricing

Determine an hourly rate you want to earn, track your hours on a piece, then add that to your materials cost. This is more accurate but requires honest time-tracking. Most experienced sellers use a hybrid: the calculator handles materials, then they layer labor on top.

A Realistic Example

A 2' × 3' floor rug might take: $25 in yarn, $8 in cloth, $5 in adhesive and backing = $38 in materials. Add 5 hours of tufting + 1 hour of finishing at $25/hr = $150 in labor. Total cost: $188. Most tufters selling quality work price this kind of piece at $200–350, depending on design complexity and market.

Using the TTW Rug Pricing Calculator

TTW built priceyourcraft.com — a free online calculator — after years of selling tufted rugs. Enter your rug's dimensions, add your yarn costs and labor rate, and it generates a complete quote you can save, export to PDF, or share with a client.

The calculator handles: material costs by rug dimensions, yarn requirements so you know exactly how much to order, tufting and finishing labor at your own hourly rate, overhead and platform fees, and a professional client-ready quote output.

Beyond the base calculator, remember to add: design time (especially for custom work), finishing costs like professional serging or binding, and platform fees if selling on Etsy, Shopify, or at markets.

Design Image Analyzer — Yarn by Color

The most powerful feature in the calculator is the Design Image Analyzer (available on Expert & Studio Pro plans). Upload a photo of your rug design and it automatically breaks down yarn requirements by color — so you know exactly how much of each color to buy before you start tufting.

Step 1: Upload any PNG, JPG, or WebP image of your design. The analyzer scales it automatically.

Step 2: Add your yarn types, weights, and prices. The analyzer applies a wastage percentage for realistic estimates.

Step 3: Automatic color quantization identifies every distinct color in your design. Adjust tolerance to fine-tune.

Step 4: Get a full breakdown — area %, yarn amount, and cost per color. Merge similar colors and export as CSV.

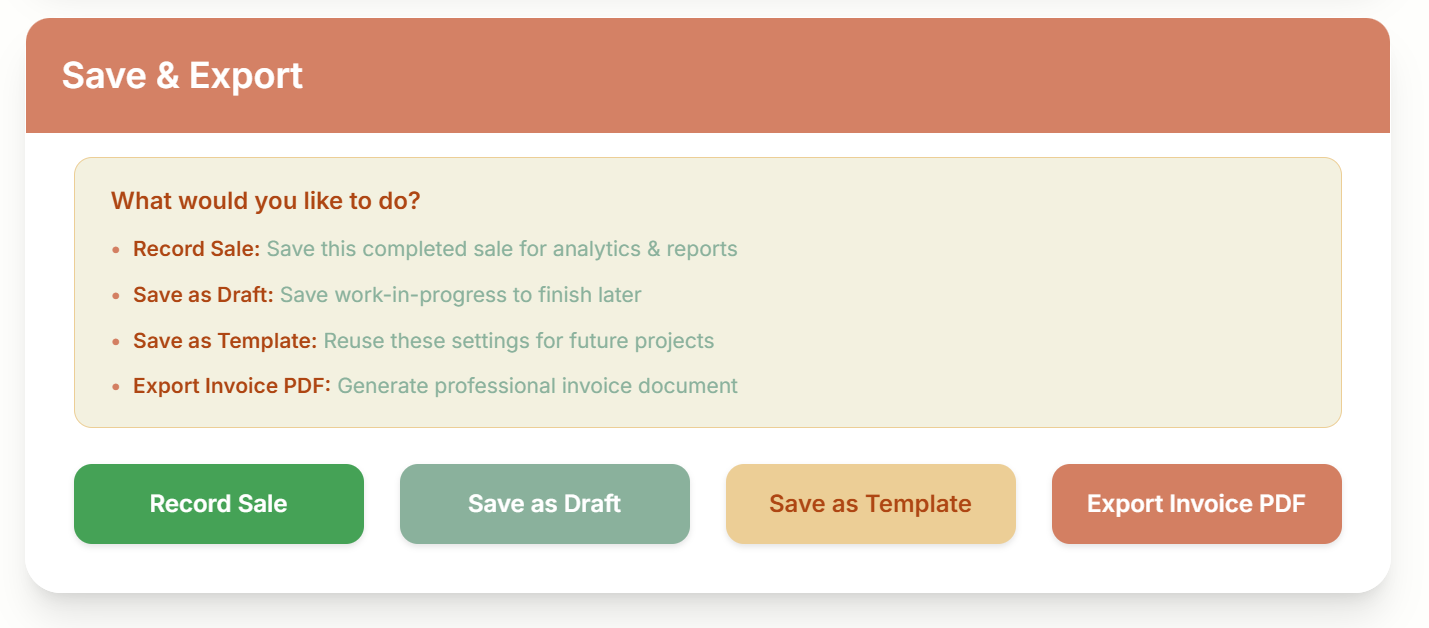

Step 5: Save results as a draft or template, or export a professional invoice PDF to share with clients.

Try the calculator at priceyourcraft.com →

Community-Tested Pricing Tips

• Don't underprice yourself — underpriced handmade goods devalue the craft for everyone
• Floor rugs command higher prices than wall art because buyers understand they'll last for years
• Custom work should cost more — add a premium for the design time and the one-of-a-kind nature
• Know your market — prices that work at a craft fair differ from prices in an online shop
• Use the Image Analyzer before you buy yarn — it prevents over-ordering and costly color mistakes

Getting your design from paper (or screen) onto your tufting cloth is one of the first steps in every project — and there are a few approaches depending on your setup and the complexity of your design.

Option 1: Freehand Drawing

For simple shapes and organic designs, draw directly on the cloth with a permanent marker or chalk pencil. Remember: you're drawing on the back of the cloth, so your design appears mirrored on the front. For asymmetric designs (faces, text, logos), flip your image before drawing.

Option 2: Light Tracing

If you have a printed template, hold it against a bright window or lightbox with your tufting cloth on top, and trace the design through. Works best for simpler designs with clear, bold lines.

Option 3: Projector (Most Popular)

Many tufters project their design directly onto the mounted cloth using a phone projector, ceiling projector, or even a phone with a projector attachment. This allows for any size design, easy resizing, and hands-free tracing. Set up your frame, dim the lights, project your image onto the cloth, and trace. This method has become the go-to for most serious tufters.

Option 4: Pounce / Transfer Method

Print your design, poke holes along all the lines with a pin or pounce wheel, then press chalk or charcoal through the holes onto the cloth. Creates a dotted line to follow. Traditional but effective for complex shapes.

Choosing Colors

Tuft one color section at a time for the cleanest results. Plan your color changes at natural boundary lines in your design. With cut pile especially, hard edges between colors look very crisp, while loop pile gives slightly softer color transitions.

One of the most exciting things about tufting is that texture is a design element — not just a material property. Here's how to use it intentionally.

Mixing Pile Heights

If you're working on a DUO or AK-III (machines with variable pile height), you can tuft different sections at different heights to create sculptural dimension. A background at 7mm with foreground elements at 20mm creates a genuine 3D effect.

Mixing Cut and Loop Pile

Pairing cut pile (soft, plush) with loop pile (structured, nubby) within the same piece creates strong textural contrast. This technique is especially effective for creating outlines — loop pile outlines around cut pile fills give a very clean, graphic look.

Sculpting and Carving

After tufting and before applying adhesive, you can use scissors to "sculpt" or "carve" the pile — cutting down certain areas lower than others, or creating beveled edges between sections. This technique, sometimes called pile carving, turns a flat rug into something with real depth.

Color Gradients

To create a gradient, gradually transition between two colors by blending strands — for example, starting with 2 strands of color A, then 1 A + 1 B, then 2 strands of B. This requires rewinding your yarn onto cones with a specific strand blend, but the effect is beautiful.
